1 Pulley Assembly

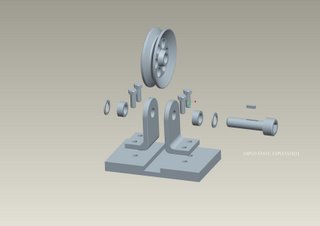

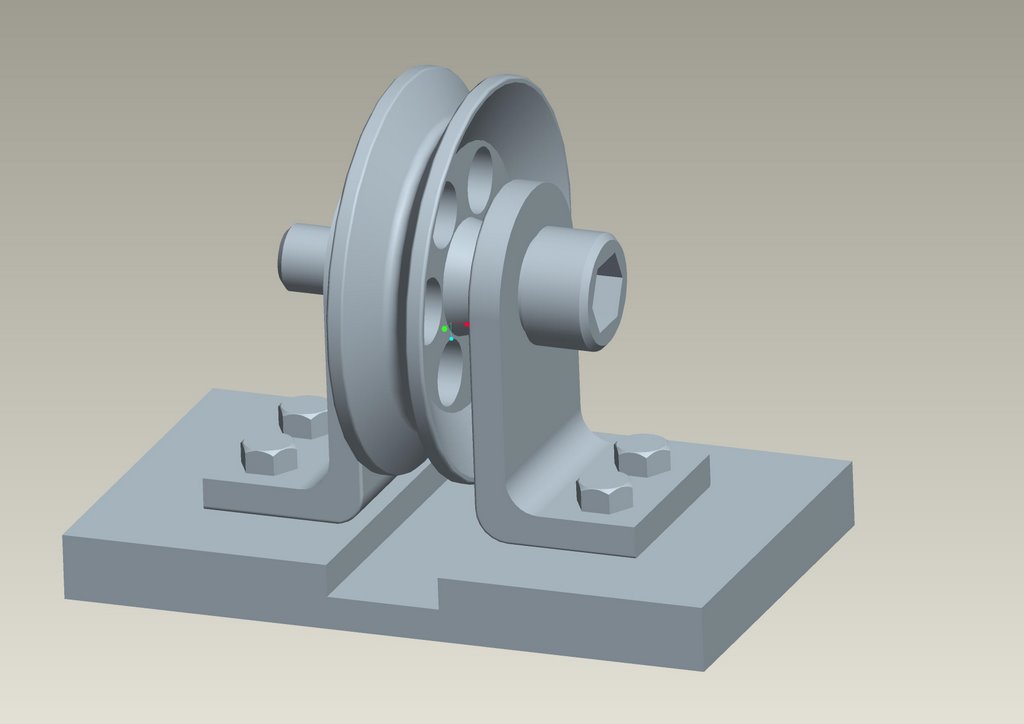

Here's a pulley assembly model done in Pro/E. Given the fact that I followed the book from Dr. Roger Toogood, I took considerable time to make it. I appreciate it that Toogood takes the pain to make the modeller think on his own about certain things, but if he wants to write a book for beginners, he better rethink his style and mode of presentation. I think it can get better in many ways.
