0 Simple Part

A part made in Pro/E through a sequency of steps :

1. Make the block as shown below.

2. Remove material by sketching a profile on the front face of the above part, extruding it through the entire material and telling pro/e to remove that much material.

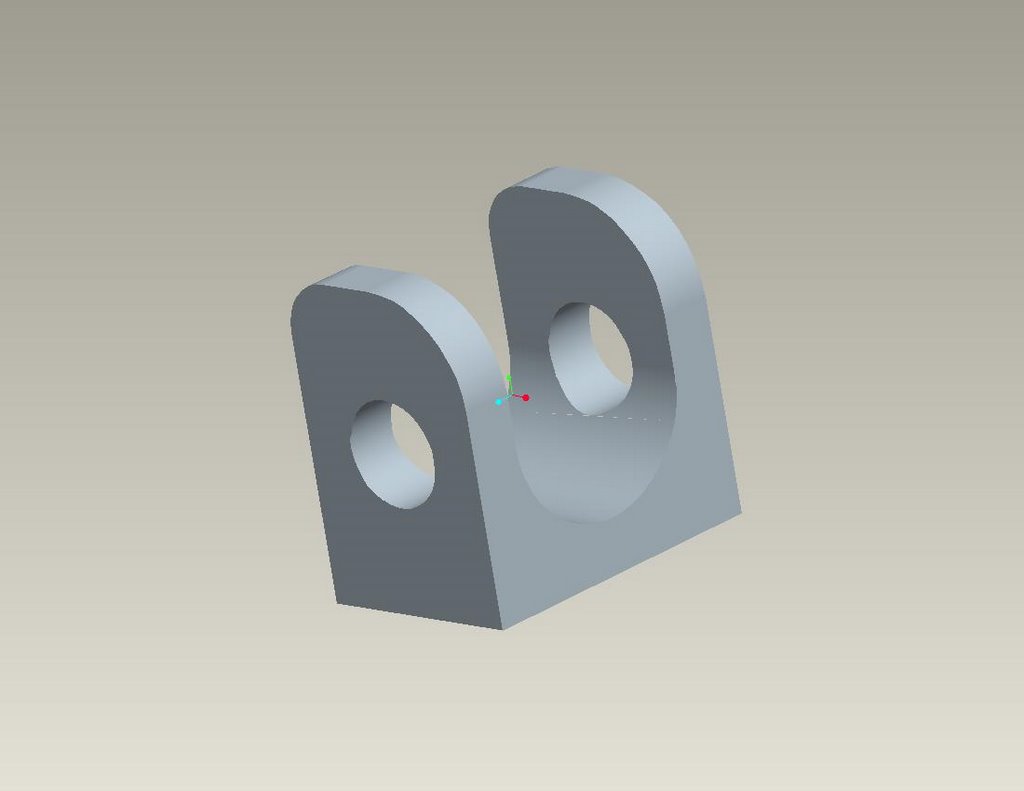

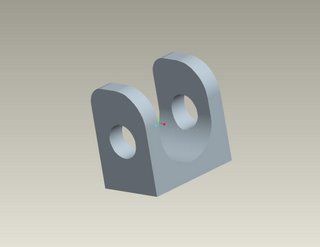

3. Place a hole on the side and extrude it through the entire material. Tell pro/e to remove that much material. You'll end up with the following part.

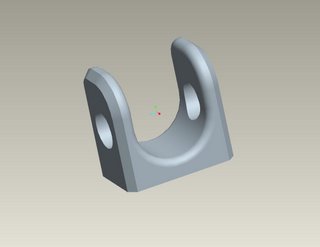

4. Add rounded edges to the part above.
