1 Guide Pin & Turbine Blade

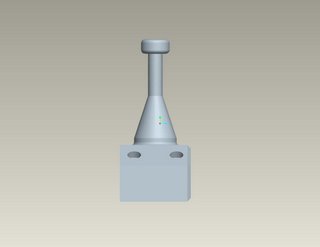

1. A guide pin from beginning to end.

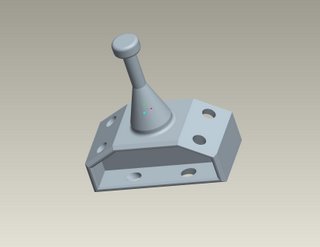

Remove material from front. Mirror on the other side. Add a pair of holes to one side and mirror on the other.

2. Revolved pattern on blades on a turbine shaft.

Done in Pro/E.
